SPREADING TABLES

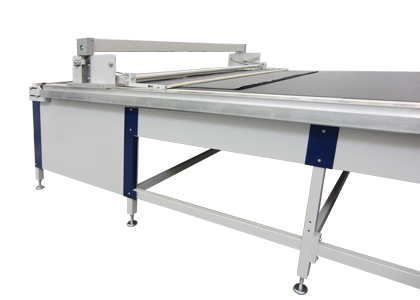

The KURIS tables are developed to state-of-the-art criteria. The water-resistant MDF-wooden plate offers good features against air humidity. Each table is equipped with stable profiles and an aluminium guide rail with integrated toothed belt. The connecting elements are screwable – based on modular design principle. Thus the tables can be prolongated at a later date without problems. Each segment has boreholings for the electrical power supply / energy chain. Turning feet for the height adjustment with shock-mount mats allow an easy and equal table alignment.

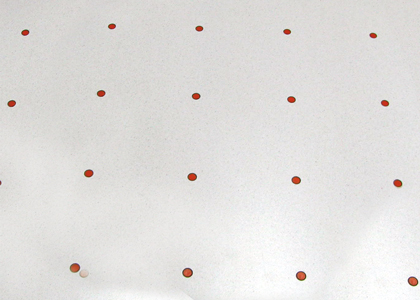

The KURIS air cushion tables are equipped with high-quality ring nozzles, by which the air can stream out zonularly in an optimal angle. The airflow is distributed at the best. This helps to move the fabrics wrinkle-free on the table plate in an efficient, gentle manner and without big efforts. Basis is our Standard-table.
The KURIS conveyor belt tables are equipped with a PVC-belt, which fully automatically assist the spreading and cutting process. A manual operation is possible as well. By transporting the materials on the belt the production steps are optimized and the complete process condensed. This table is also available with link belt.
| Table lengths: | minimum 2,00 m (conveyor belt: minimum 4,00 m maximum 8,00 m) | |
| Table widths: | 1,10 m / 1,25 m / 1,40 m / 1,85 m /2,00 m / 2,30 m / 2,45 m | |
| Height adjustment: | 0,85 m - 0,90 m | |
| Leg distance: | 1,00 m in longitudinal direction | |
| Table frame: | plastic coated RAL 7035 light grey | |
| Table plate segments: | max. length 2,00 m | |
| Table plate material: | MDF wooden plate, water-repellent | |
| Table plate thickness: | 30 mm | |
| Table plate decor: | U1010MP off-white | |
| Total weight: | approx. 30 kg / m² | |
| Nozzle distance: | 250 mm | |
| Power: | 1,1 kW / compressor (sufficent for approx. 5-7 m) | |
| Voltage/frequency: | 400 V, 50/60 Hz |
SPREADING TABLES
You can find further information and technical details
in our brochures.
Kuris, the specialist for innovative spreading and cutting technology. The comprehensive product range also allows solutions tailored to your particular needs. In our showroom, spreading and cutting machines are available both for general demonstrations and for testing with your own materials.
Arrange an appointment with us
We will be delighted to advise you!
The base for your production!
Standard-tables Air-tables Conveyorbelt-tables
SPREADING MACHINES

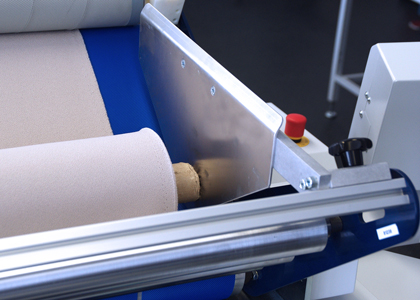

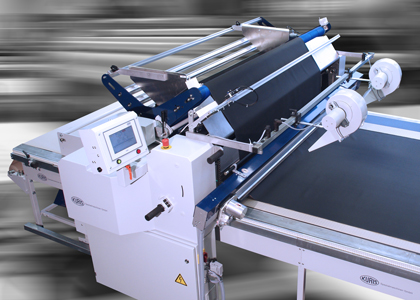

The Kuris Shuttle spreading machine suits perfectly for critical, smooth materials and/or even badly rolled material bars with different surfaces. The new deviating roller system of the driven cradle or material bar ensures an excellent quality in spreading. Even through fully automatic spreading of tension-sensitive materials excellent spreading results will be achieved. The precise and regulated prefeed material roll will exactly suit the required spreading speed. The semi or fully automatic unthreading/threading of the fabric will reduce essentially the set-up times. Many steps to be taken for the spreading with different positioning and cutting points, quantity of layers, zig-zag spreading programmes as well as numerous custom-made parameters can be individually programmed.

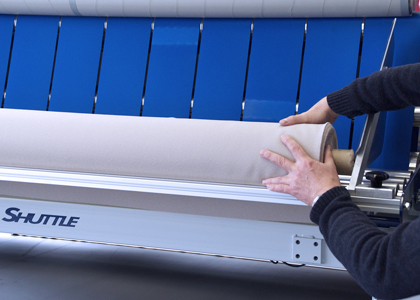

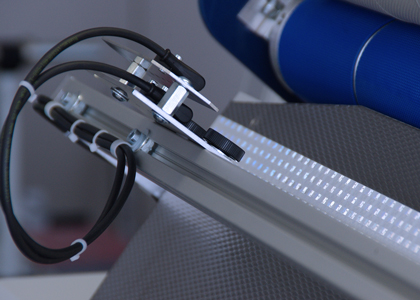

cradle with fully automated lifting for ergonomic loading process a new idler-pulley system for the continuous running of the conveyor belt (option) user-friendly machine control graphical user interface easy to use software update possible even after several years of use programming possibilities for many spreading steps silicon coated drive wheel photocell electric for the examination of the edge control even for difficult materials different cutting units simply to be mounted dynamic speed control robust control cabinet-housing with powder coating surface Fabric edge- blowing feature against curling effect Turntable Driven rolling bar for tension-free spreading Zack-cutting unit Zig-zag spreading with catcher system Cradle execution (for fabric rolls up to 600 mm or up to 800 mm in diameter) Travel-on platform and seating support Anti-static bar QUICK -LIFT SPEED-LIFT C350 LIFT| Working widths: | 1,68 m / 1,83 m / 1,98 m / 2,13 m / 2,28 m | |
| Table widths: | up to 2.45 m (others on request) | |
| Spreading speed : | max. 100 m/min | |
| Spreading height: | 150 mm | |
| Fabric roll diameter: | max. 800 mm | |
| Fabric roll weight: | max. 125 kg | |
| Electrical connection: | 2,0 kW; 400 V | |
| Weight of machine: | depending on working width and equipment – from 500 kg | |
| Operation: | Touch panel with graphic interface |
Shuttle
You can find further information and technical details
in our brochures.
Kuris, the specialist for innovative spreading and cutting technology. The comprehensive product range also allows solutions tailored to your particular needs. In our showroom, spreading and cutting machines are available both for general demonstrations and for testing with your own materials.
Arrange an appointment with us
We will be delighted to advise you!
Progress through performance and precision
Flexbile Easy to use Reliable
Spreading Maschines
Fully automated spreading machine for non-twisting laying which will comply with all the demands in full. Besides, it suits ideally to batch production and production to a large extent.
Innovative spreading machine which is suitable for critical, smooth fabrics, poorly wound rolls of material The new processor meets one of the conditions which is to put strain sensitive goods without tension. An automatic keypress of the threading and unthreading of the substance facilitates the reduction of the setting up time considerably. Many laying steps with different applicationand the cutting point, ply number, zigzag laying program, and many other material-specific parameters can be individually programmed.
Fully automatic spreading with step processing, Automatical thread in and thread out, graphical parameterization, Taking over of order data from server, Taking over of order data from optimizasystem and to convert product management and the entry of quantities
Lightweight chassis Very low noise All wheels are electrically driven High running and laying accuracy – for the most difficult materials by electronically synchronized material specification Graphical user interface Zag-box available as an option for precise cuts or round knife for cutting in both directions 3 USb connections for data transmission Only a short setting up time App lications: round knife band knife automatic grinding fabric edge against blowing function curling effect revolving upper carriage weight-dependent brake optical fault detection system blowing out of folds is individually controllable fan adjustment via toothed belt vibrating plate for substance-relaxing insert segment with graphic programming save parameters depending on material non-twisting spread lighting device share-ride installation and support bracket additional cutting knife for paper pad automatically fed float rod unrolling bar with clamping cones unrolling bar is expandable loading device SPEED-LIFT loading device QUICK–LIFT| working widths: | 1,68 m / 1,83 m / 1,98 m / 2,13 m / 2,28 m | |
| wide table (others on request): | 1,85 m / 2,00 m / 2,15 m / 2,30 m / 2,45 m | |
| spreading speed: | 100 m/min | |
| spreading height: | 150 mm (with cutting attachment) | |
| roll diameter: | max. 1000 mm / Standard 400 mm | |
| roll weight: | max. 125 kg | |
| electrical connection: | 3,0 kW; 400 V | |
| machine weight: | ab 750 kg (depending on working width and equipment) | |
| air supply: | max. 6 bar |
A23
You can find further information and technical details
in our brochures.
Kuris, the specialist for innovative spreading and cutting technology. The comprehensive product range also allows solutions tailored to your particular needs. In our showroom, spreading and cutting machines are available both for general demonstrations and for testing with your own materials.
Arrange an appointment with us
We will be delighted to advise you!
Progress through performance and accuracy. The spreading machine for hard to spread fabrics.
Fully automated Especially for elastic fabrics Good for smooth textiles
SPREADING MACHINES
Special spreading machine for semi and fully automatic spreading of folded or rolled tubular fabric equipped with expanders and as option with crease changing device.

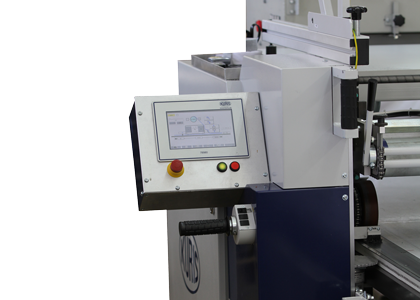

The compact KURIS tubular spreading machine A16 is a special system for semi and fully automatic spreading of tubular fabric. The user interface via touch-screen concept is easily operable. Thanks to a programmable, multi-stage driving profile the system is featuring optimal dynamic driving characteristics. The low construction offers the customer a wide view field during the spreading process. The tubular spreading device including special calender rolls has a separate adjustment possibility for the contact pressure on both sides – the roll gap is opened via an eccentric crank. The higher-level micro processor regulates via the controlled gears a precise synchronisation between the fabric pre-feeding and travel drive. The integrated frequency transformers secure an exact and wrinkle free spreading. With the threading aid the fabric can be thread without problems. The motorised aggregate lift is integrated to achieve spreading heights up to 230 mm.

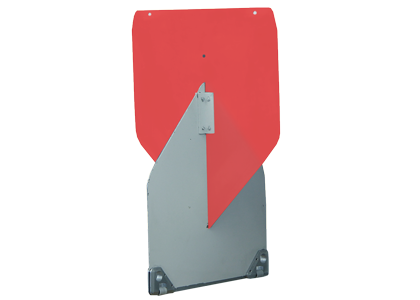

Big, low and easily accessible platform for folded fabric, 900 mm depth The fabric-deflector and the expanders for r olled or folded material are adjustable Torsion-resistant light chassis All-wheel-drive with PUR-rollers Operation via touch-screen / Windows basis Easily operable threading aid Rotary handle for speed regulation Operator’s travel-on platform with safety stop Operator’s travel-on platform alternatively with support bracket or seat Unrolling device for rolled tubular fabric Adjustable expanders in different widths Crease changing device, lateral installation Separate crease changing unit for maximum spr eading accuracy The tubular spreading unit is also appr opriated for our spreading machine model SHUTTLE| Working widths: | 0,93 m / 1,08 m / 1,23 m | |
| Table widths: | min. 1,10 m / 1,25 m / 1,40 m | |
| Spreading speed: | max. 100 m/min | |
| Spreading height: | max. 230 mm | |
| Roll diameter: | max. 600 mm | |
| Roll weight: | max. 80 kg | |
| Electrical connection: | 1,5 kW; 230 V; 50/60 Hz | |
| Machine weight: | from 300 kg (depending on working width / execution) | |
| Operation: | Touch-screen with graphic surface |
A16
You can find further information and technical details
in our brochures.
Kuris, the specialist for innovative spreading and cutting technology. The comprehensive product range also allows solutions tailored to your particular needs. In our showroom, spreading and cutting machines are available both for general demonstrations and for testing with your own materials.
Arrange an appointment with us
We will be delighted to advise you!
Tubular spreading made simple
Easily operable threading aid Rotary handle for speed regulation Accessible platform
Legemaschinen
The Kuris Shuttle spreading machine is ideally suited for critical, smooth materials or even poorly wound rolls of material, with a wide range of different surfaces. The new deviating roller system of the driven cradle or material bar ensures an excellent quality in spreading. Excellent spreading results are achieved even with fully automatic spreading of tension-sensitive materials. The precisely regulated material specification can be adapted precisely to the required spreading speed. The semi/fully automatic unthreading/threading of the fabric considerably reduces the set-up times. Many spreading steps with different positioning and cutting points, numbers of fabric layers, zig-zag spreading programmes as well as numerous other material-specific parameters can be programmed individually.
Cradle with automatic lifting for an ergonomic loading process (option) User-friendly machine control Graphical user interface Easy to use Software update possible even after several years of use Programming possibilities for many spreading steps Silicone-coated drive wheels Photocell for monitoring the edge control Different cutting units can be mounted easily Infinite speed controller Lightweight design Very smooth running Driven rolling bar for low-tension spreading Zack-cutting unit Cradle execution (for fabric rolls up to 800 mm in diameter) Travel-on platform and seating support Anti-static bar Pick-up system for heavy materials TDS error detection Material thickness measurementLoading equipment: C350 Floor lift
Noise level: 57 - 74 dB(A)
Mark of conformity: CE
| Working widths: | 1,83 m / 2,28 m | |
| Table width: | up to 2,45 m | |
| Moving speed: | up to 120 m/min | |
| Spreading height: | max. 150 mm | |
| Machine weight: | from 500 kg (depending on working width and equipment) | |
| Roll diameter: | max. 600 mm | |
| Roll weight: | max. 60 kg (option: 150kg) | |
| Electrical connection: | 3,0 kW; 400 V | |
| Operation: | Touch panel with graphical interface |
A55
Weitere Informationen und technische Details
finden Sie auch in unseren Prospekten.
Kuris, the specialist for innovative spreading and cutting technology. The comprehensive product range also allows solutions tailored to your particular needs. In our showroom, spreading and cutting machines are available both for general demonstrations and for testing with your own materials.
Arrange an appointment with us
We will be delighted to advise you!
Spreading machine for
excellent spreading results
Fast Precise Low-maintenance
