Loading equipmentFor ergonomics at the workplace and automation, a loading device is necessary for loading our spreading machines. Whether cradle, bar or for automatic grabbing from a paternoster, we have various loading devices on offer for our various machine types and applications. |
|
LOADING EQUIPMENT
C350

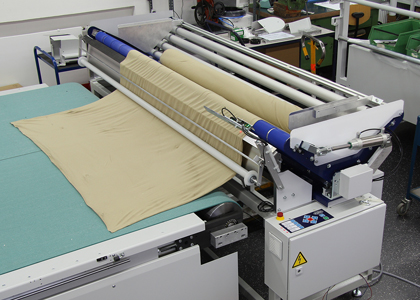

For cradle-spreading machine
By motor and chain driven lifting device with two platforms for lifting, storing and loading of fabric balls up to a diameter of max. 40 cm. Particularly suitable for loading and unloading of a cradle-spreading machine which operates without rods.
The motor of the loading device is controlled and moved by a frequency converter and a worm gear. Its holding position is fixed by a magnetic brake.
The C350 is equipped with two loading platforms, which can be moved steplessly upwards and downwards by using the manual control. The fabric rolls can be rolled directly from the forklift or a transport trolley onto the platform.
Running noise: 65 dB (A) measured at a distance of 1m at running idle
Machine model according to EC directive
TECHNICAL SPECIFICATIONS:
| Lifting force: | max. 350 kg | |
| Machine length: | approx. 1150 mm | |
| Machine height: | approx. 2480 mm | |
| Total width: | approx. 2440 mm | |
| Max. opening: | 2020 mm | |
| Max. ball diameter: | 400 mm | |
| Max. lifting height: | max. 1200 mm | |
| Min. lifting height: | min. 160 mm |
Rated power supply:
| Engine power: | 1,5 kW | |
| Operating voltage: | 32 V, 50 / 60 Hz |
LOADING EQUIPMENT
Quick-Lift
Meant for spreading machines with rods
The Quick-Lift by Kuris loads and unloads the spreading machine with roll material. Two rotary arms lift the roll material, for example from the floor into the machine.
In combination with the thread-in process of a KURIS spreading machine, the loading and unloading is particular simple and very efficient. After spreading, the unloading of the fabric roll will be executed by the grippers or hooks without any hand grips on the Quick-Lift.
The Quick-Lift is mounted on the table or a special rack and can lift the fabric rolls from the floor into the spreading machine. Two speeds allow for a quick pickup as well as a gentle loading of the fabric roll. The Quick-Lift can also be installed on a carrier, so that two side-by-side spreading machines can be operated by only one loading device. Subsequent mounting on an already existing line of the spreading machine is possible.
The Quick-Lift unburdens the operator considerably. The Quick-Lift makes it easier for the spreading machine to be equipped with a fabric bar and even more economical.
It is available in various mounting versions:
mounting on the table- installation behind the table
- as a mobile version
- in combination with a carrier
Running noise: 65 dB (A) measured at a distance of 1m at running idle
Machine model according to EC directive
TECHNICAL SPECIFICATIONS:
| Roll weight: | max. 120 kg | |
| Material roll diameter: | max. 1000 m | |
| Overall height: | 2280 mm | |
| Working width: | 1680 mm bis 2280 mm |
Rated power supply:
| Power: | 2,2 kW | |
| Operating voltage: | 230 / 400 V, 50 Hz |
Loading EQUIPMENT

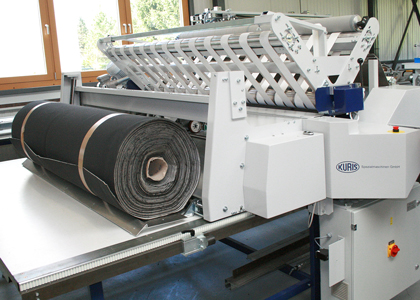

Speed-Lift
Integrated into a spreading machine with bar
The rolled goods can be picked up directly from the table level by the Speed-Lift and inserted into the bar winding-up of the Shuttle / A23. The speed-lift is controlled by the control unit of the spreading machine.
ADVANTAGES:
- saves off-peak
- relieves your employees
- ergonomic application
Running noise: 65 dB (A) measured at a distance of 1m at running idle
Machine model according to EC directive
TECHNICAL SPECIFICATIONS:
| Roll weight: | max. 60 kg | |
| Material roll diameter: | max. 600 m | |
| Working width: | 1680 mm to 2280 mm |
Rated power supply:
| Power: | 1 kW | |
| Operating voltage: | 230 V, 50 / 60 Hz |
The comprehensive product range allows solutions made for your requirements. Spreading and cutting systems are available in our showroom for general demonstration as well as for test cuts with your own materials.
You are kindly asked to make an appointment with us.
We look forward to assist you any time!
