Legemaschinen

A55

Spreading machine for excellent spreading results

The Kuris Shuttle spreading machine is ideally suited for critical, smooth materials or even poorly wound rolls of material, with a wide range of different surfaces. The new deviating roller system of the driven cradle or material bar ensures an excellent quality in spreading. Excellent spreading results are achieved even with fully automatic spreading of tension-sensitive materials. The precisely regulated material specification can be adapted precisely to the required spreading speed. The semi/fully automatic unthreading/threading of the fabric considerably reduces the set-up times. Many spreading steps with different positioning and cutting points, numbers of fabric layers, zig-zag spreading programmes as well as numerous other material-specific parameters can be programmed individually.

Benefits:

• Cradle with automatic lifting for an ergonomic loading process (option)
• User-friendly machine control

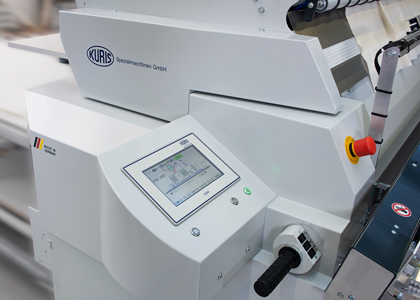

• Graphical user interface
• Easy to use
• Software update possible even after several years of use
• Programming possibilities for many spreading steps
• Silicone-coated drive wheels
• Photocell for monitoring the edge control
• Different cutting units can be mounted easily
• Infinite speed controller
• Lightweight design
• Very smooth running

Options:

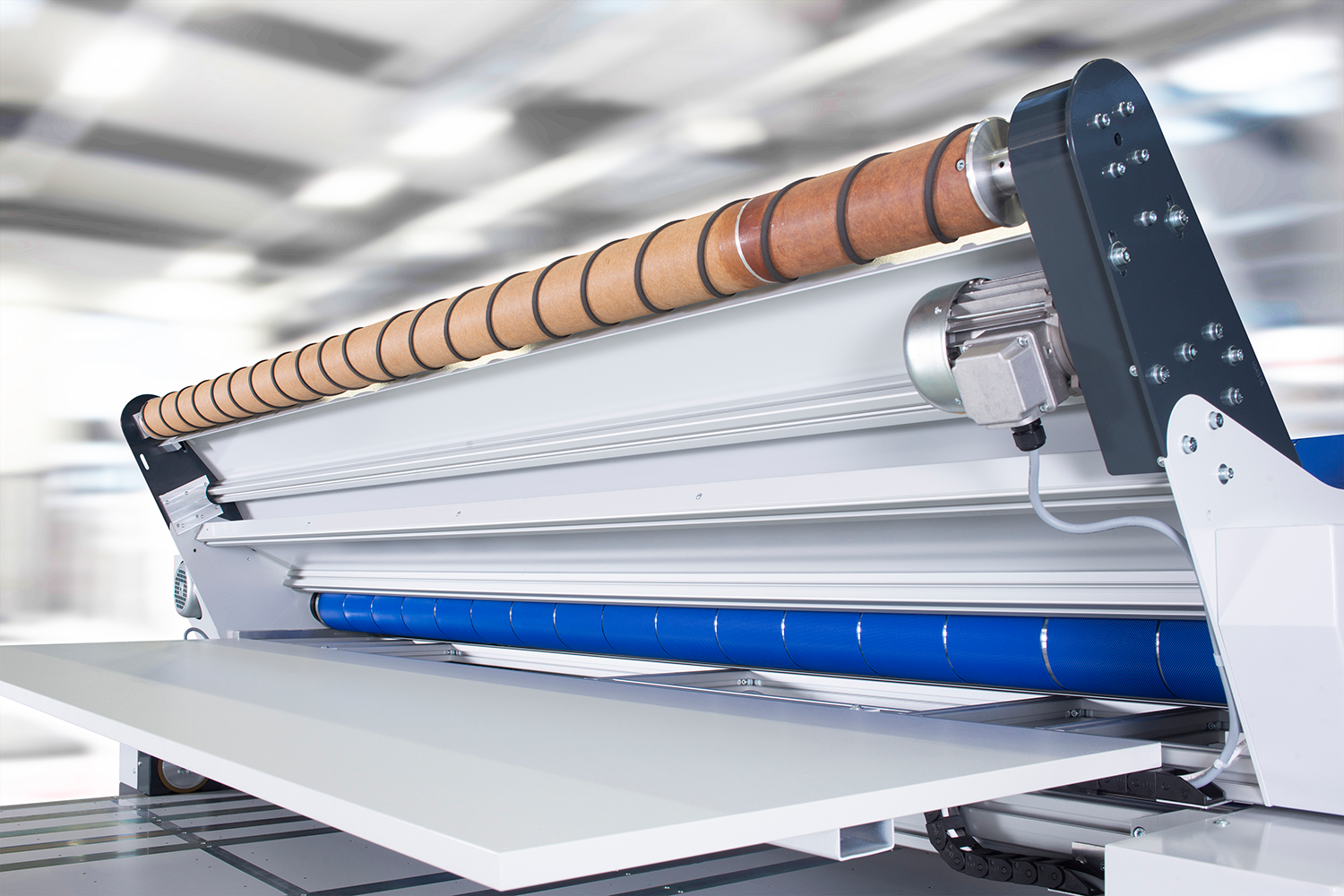

• Driven rolling bar for low-tension spreading
• Zack-cutting unit
• Cradle execution (for fabric rolls up to 800 mm in diameter)
• Travel-on platform and seating support
• Anti-static bar
• Pick-up system for heavy materials
• TDS error detection
• Material thickness measurement

Loading equipment: C350 Floor lift
Noise level: 57 - 74 dB(A)
Mark of conformity: CE

TECHNICAL DETAILS:

A55

Downloads

Weitere Informationen und technische Details
finden Sie auch in unseren Prospekten.

A55
