Small machines

CROSSCUTTER C3 & AMS

Fabric spreading and cutting device with
automatic or manual cutter

Spread & Cut fabric

The Crosscutter is an user-friendly fabric spreading and cutting device. It is ideal for professional use in the clothing industry, for home textiles, in the automotive supplier industry as well as for upholstery production.

CROSSCUTTER C3 automatic:

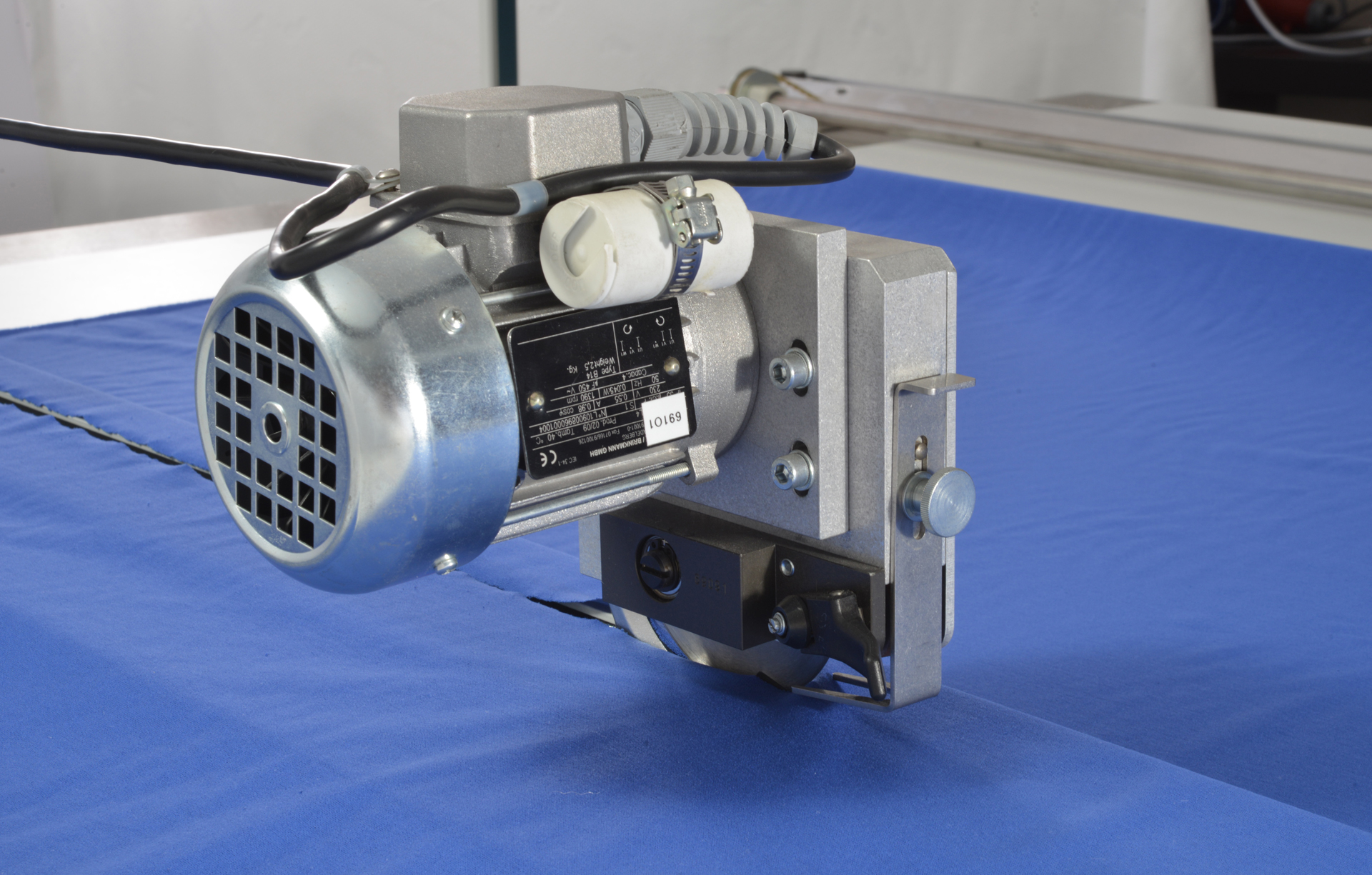

The manual version of the Crosscutter has a cutting unit with vertical lift and a fabric rail with quick adjustment. The “BOM 30 S” or alternatively the “BOM 101 S” is provided as the cutting unit. A mechanical length counter can also be optionally selected.
Technische Daten:

TECHNICAL DATA - CROSSCUTTER C3 automatic:

Working width (fabric width):   Up to 2,43 m
Table width:   1,60 / 1,70 / 1,85 / 2,00 / 2,15 / 2,20 / 2,50 / 2,76 m
Tools:   Round knife with direct drive / curved knife

Electrical connection power:

Operating voltage:   230 V / 50 Hz
Power:   500 watts
Knife Speed:   750 rpm
Knife diameter:   100 mm
Max. cutting height:   20 mm
Fuse:   10 A
Protection class:   2
Weight (cutting unit):   80 kg
Noise level:   70 db
Mark of conformity:   CE



AMS manuell



TECHNICAL DATA - AMS manuell:

Working width (fabric width):   1,68 / 1,83 / 1,98 / 2,33 / 2,59 m
Table width:   1,85 / 2,00 / 2,15 / 2,50 / 2,76 m
Tools:   Round knife

Electrical connection power:

Operating voltage:   230 V / 50 Hz
Power:   140 watts (BOM 30) / 200 watts (BOM 101)
Knife speed:   750 rpm
Knife diameter:   80 mm (BOM 30) / 100 mm (BOM 101)
Max. cutting height:   27 mm (BOM 30) /   25 mm (BOM 101)
Protection Class:   1
Weight (cutting unit):   2,2 kg (BOM 30) / 3 kg (BOM 101)
Noise level:   70 dB(A)
Mark of conformity:   CE
Downloads:

SMALL MACHINES

Downloads

You can find further information and technical details
in our brochures.

 CROSSCUTTER C3
Zusatz:

The comprehensive product range also allows solutions tailored to your particular needs. In our showroom, spreading and cutting machines are available both for general demonstrations and for testing with your own materials.

Arrange an appointment with us
We will be delighted to advise you!
